BARDIANI BUTTERFLY VALVES

BARDIANI VALVOLE

BARDIANI VALVES, made with top quality raw materials. Thanks to its versatility, sturdiness and reduced number of seals in contact with the product, it can be installed in all applications requiring maximum reliability in cutting off and directing a fluid.

(EHEDG and 3A certified)

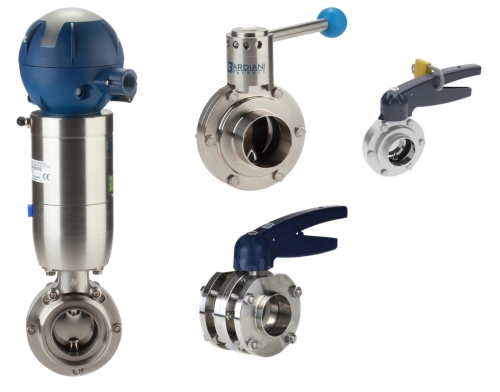

MANUAL BUTTERFLY VALVE (VVF)

The VVF is a manual butterfly valve which cuts off and monitors fluids in the process flow by movements of opening and closing. Characterized by a simple and elegant design and engineered to be extremely reliable, it is commonly used in many different applications requiring ample product passage. Available in versions with a plastic 5-position handle, stainless steel 4-position handle or with a millimetric regulation handle for precision measuring of fluid passage.

PNEUMATIC BUTTERFLY VALVE (ZVF)

ZVF is a butterfly valve with pneumatic actuator which cuts off and monitors fluids in the process flow by movements of opening and closing. Characterized by a simple and elegant design and engineered to be extremely reliable, it is commonly used in many different applications requiring extensive product passage.

STANDARD FEATURES

• Connections from DN10 to DN150 (from 1/2” to 6”)
• EPDM, FKM, MVQ and HNBR gaskets
• Maximum pressure 10 baR

• Connections Type: DIN, SMS, IDF, BS (RJT), Clamp, Flange
• Material in contact with the product: AISI 316L (1.4404) : Other material on request
• Product temperature (EPDM): -10 °C (14 °F) to 140 °C (284 °F) For other temperature, please ask Bardiani Valvole
• Finish on surfaces in contact with the product: Ra 0.8 μm (other types of surface finish on request).

MAIN BENEFIT/USP

• Certified hygienic design
• Maximum reliability
• Wide range of customized solutions
