BARDIANI BALL VALVES (MANUAL / PNEUMATIC)- MADE IN ITALY

BARDIANI VALVOLE

BARDIANI VALVES, made with top quality raw materials. Thanks to its versatility, sturdiness and reduced number of seals in contact with the product, it can be installed in all applications requiring maximum reliability in cutting off and directing a fluid.

(EHEDG and 3A certified)

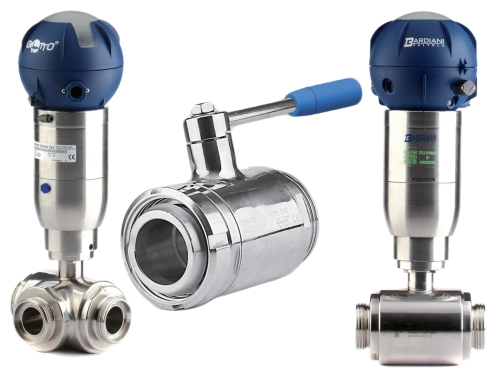

BARDIANI MANUAL BALL VALVES (VVS)

The VVS is a manual sanitary ball valve made by positioning a precision ball with hole inside the valve body whose opening movement allows a product passage without restrictions thus reducing friction loss to a minimum.

It is ideal for viscous liquids or liquids with suspended particles in the food, beverage and pharmaceutical industries and in applications with high operating pressures.

On request also available in the integral seal version to reduce any product stagnation inside the valve body to a minimum.

Fitted with a stainless steel 2-position handle, a handle with multiple positions is available on request.

BARDIANI PNEUMATIC BALL VALVES (ZVS)

ZVS is a pneumatic sanitary ball valve which allow product passage without restrictions, reducing friction loss to a minimum.
It is ideal for viscous liquids or liquids with suspended particles in food, beverage and pharmaceutical industries and in applications with high operating pressures.
On request the integral seal version it’s available, to reduce product stagnation inside the valve body to a minimum.

STANDARD FEATURES

• Connections from DN10 to DN100 (from 1/2” to 4”)
• FKM and PTFE gaskets
• Maximum pressure for two-way valves: 25 – 64 bar (depending on diameters); for three way valves: 16-40 bar (depending on diameters)

MAIN BENEFIT/USP

• Product passage without restrictions guaranteed
• High-precision
• Maximum versatility
